Product Series：1500 Frame Type Shaftless Rurret Unwinder And Rewinder

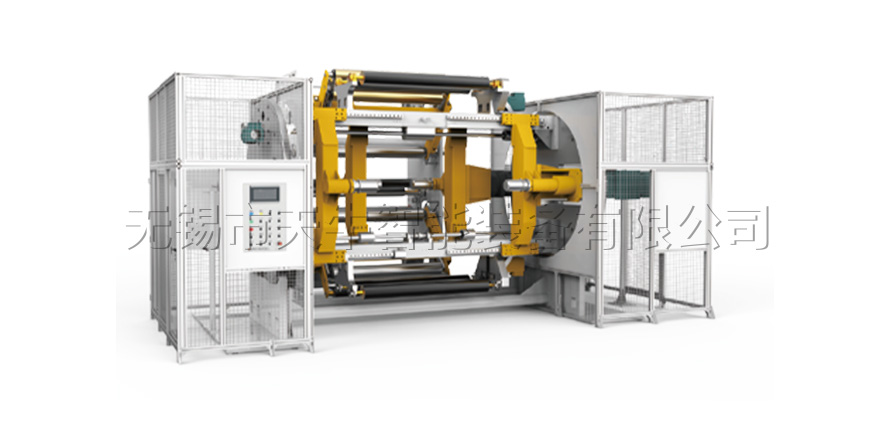

1500 Frame Type Shaftless Rurret Unwinder And Rewinder

Technical parameters
Maximum unwinder and rewinder diameter: Φ1500mm;
Minimum splicing diameter for unwinder: Φ500mm;
Up and bottom paper splicing;
3" or 6" pneumatic expansion chuck or mechanical top expansion chuck;
Dancing roller tension control;
Internal pressure roller for rewinder;
Width: 1450, 1750mm, other widths can be customized;
Velocity: 250~650m/min;
Optional: active splicing roller equipped with a drive mechanism can help prevent scratches;
Gear disk rotation speed: 1RPM
